Overview

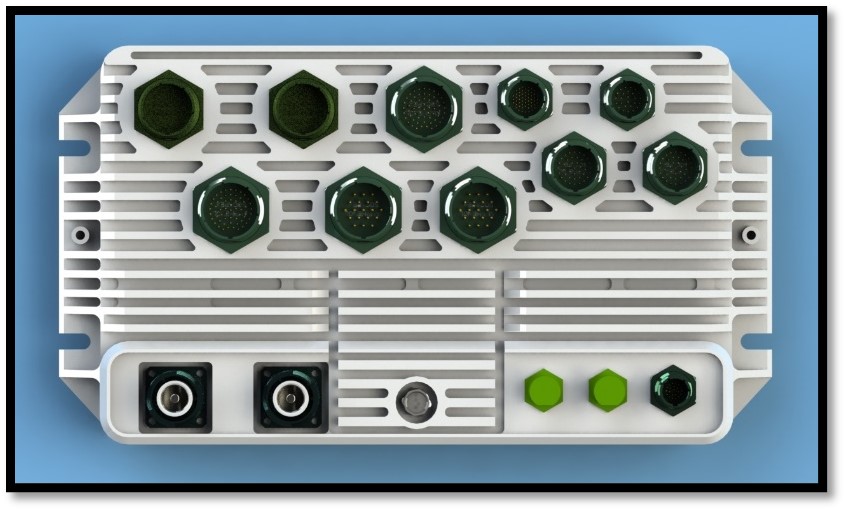

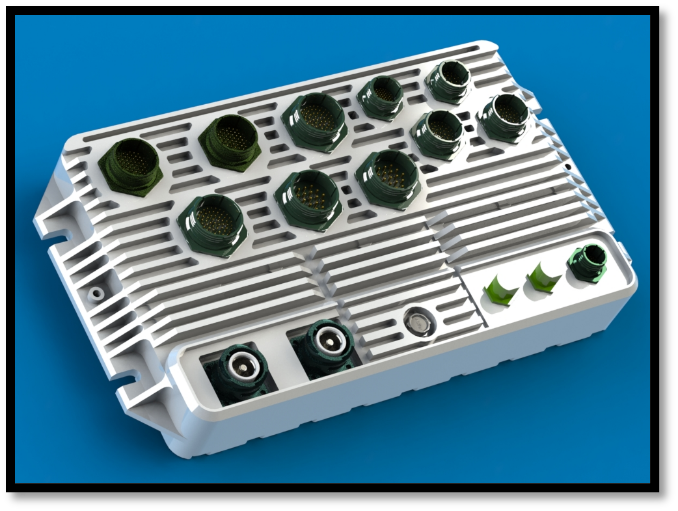

The Integrated Electronic Control Unit (IECU – BEKB) is a unit that processes commands received through its communication channels to distribute power to its connected units and subsystems. It also sends various analog and digital status information collected from its general-purpose input/output hardware and/or sensors to the system over communication channels for further processing.
Benefits
- Providing more reliable semiconductor switching capability instead of relays and circuit breakers for platforms,
- Reduction in the number of electronic units on the platform,
- Easy integration and commissioning,
- Configurability through software,
- Continuous monitoring of load voltage and current,
- Independent short-circuit and overcurrent protection for each channel,
- Continuous recording of current, voltage, and other signals with timestamps,
- Built-in CPLD programming capability for safety conditions.
Applications
- Manned/Unmanned Land, Sea, and Air platforms,
- Power distribution (up to 400 A),
- Data collection and distribution for analog and digital sensors,
- Platform body controller,
- Weapon and Smoke Grenade Fire Control.
Key Features
- High Side/Low Side Solid State Power Outputs,
- High Side/Low Side Isolated Inputs and Outputs,
- Analog/Digital Input Outputs,
- CAN communication interface,
- Real-Time Clock (RTC) triggered function execution when the system, platform, or vehicle is off,
- Multi-point temperature measurement on PCB,
- Open load/short circuit detection,
- Independent channel protection with continuous monitoring of channel voltage and current using the I2T algorithm,
- High power load support by paralleling power output channels,
- Special outputs for weapon/fog cannon firing,
- MIL-STD-1275B/D/E and MIL-STD-704F compliant power input,
- MIL-STD-461E/F EMI/EMC compatibility,
- MIL-STD-810F/G environmental conditions compatibility,
- IP67 compliant mechanical packaging,
- Compact, rugged, fanless design with military connectors,
- 24/7 operating capacity,
- ASIL-B Level MCU usage, upgradeable to ASIL-D according to project requirements,
- Built-in CPLD capability for safety conditions.
